System 04
Curtain Wall

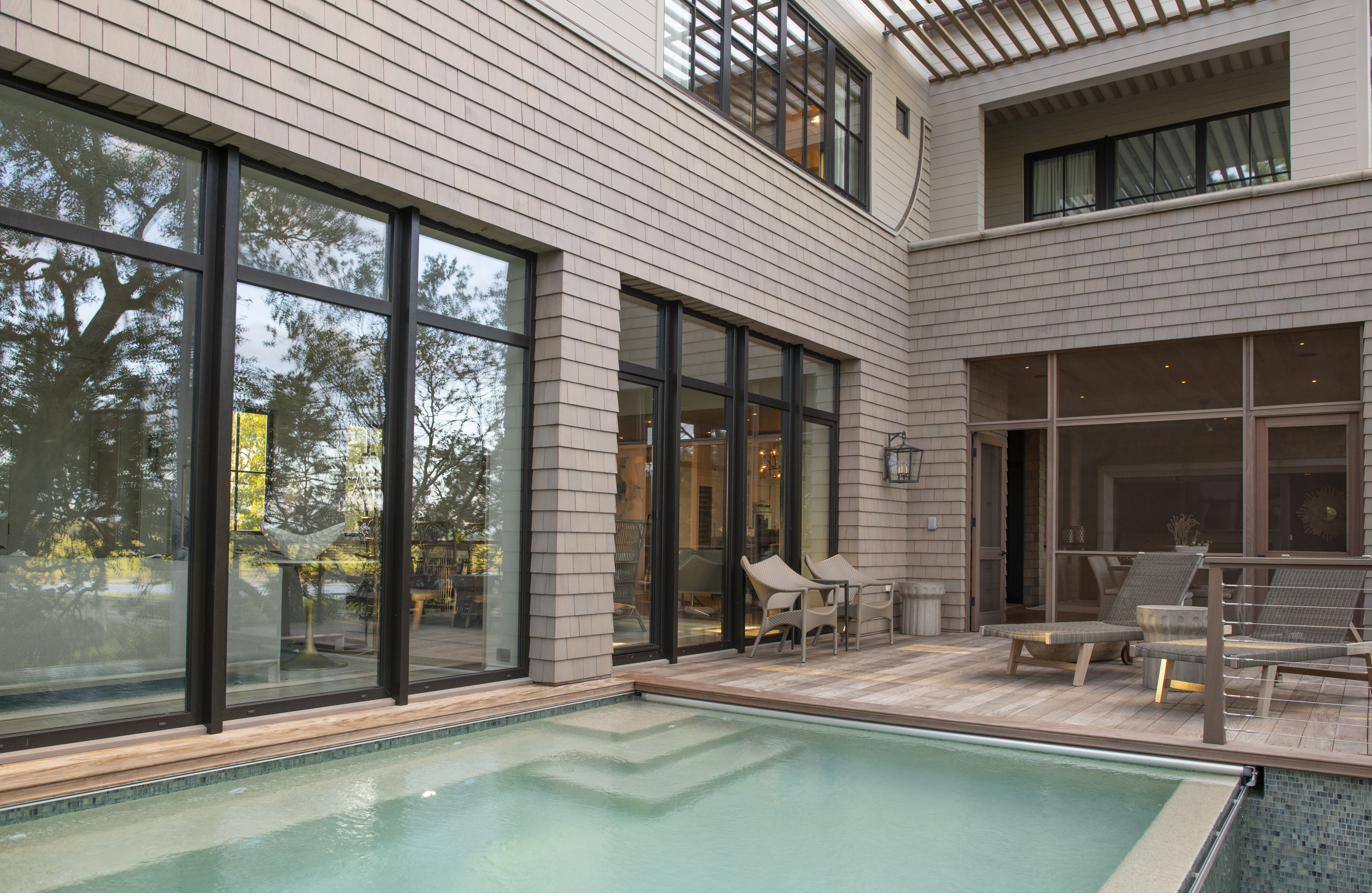

Post-and-beam aluminum-wood facades to two stories — integrating windows, doors, and lift-slides into one continuous envelope. Engineered in Germany and delivered as a pre-fabricated kit.
Technical data
| System type | Post & beam, aluminum-wood |
|---|---|
| Engineered | In Germany |
| Max facade height | 6 m / 2 stories |
| Face width | 50 mm |
| Max glass size | 2200 × 4200 mm (7′ × 13′) |
| Integration | Windows · Doors · Lift & Slides |
| Delivery | Factory pre-fabricated kit |
| Aesthetic | Unified with 83 mm aluminum-wood line |
| Performance specs | Project-engineered, on request |
Performance
Thermal0.088Glass IGU Uw · R-11.4 · whole-wall installed 0.12–0.13
StructuralDP 65+140 mph sustained wind · engineered per opening and geometry
Scale2 storiesIrregular openings and complex geometries handled as one system
Detail
Windows, doors, and lift-slides — integrated, not assembled.
Pre-fabricated kitFactory-built and delivered ready to install, reducing field labor and error on complex facades.
Unified lineShares the 83 mm aluminum-wood profile family, so sightlines stay consistent across the building.
Complex geometryPost-and-beam construction absorbs irregular openings, rakes, and oversized glazing.
Best for
Floor-to-ceiling glazingTwo-story facadesComplex geometriesLight-filled interiors
Downloads
Specify with confidence.
Public
Curtain Wall spec sheet
Full technical data, operations, and certifications. No registration required.
Trade
CAD details & BIM objects
Editable details and BIM families for specification and documentation.
